FOR APPLICATION OF CORROSIONX®, NAVGUARD® AND OTHER LIQUIDS
The Handi-Spray™ application systems were designed to atomize CorrosionX , CorrosionX® Aviation , CorrosionX® Extended Duty , NavGuard and other liquids into an incredibly fine, smoke-like fog. This fine atomization converts low and medium viscosity liquid products into micro-droplets, which stay suspended in the air for an extended period of time. This degree of atomization is key for achieving the most cost-effective and thorough application of corrosion preventative compounds into airframes and other irregularly shaped enclosures where direct application is not practical (e.g. around blind corners, unreachable areas, etc.).
VIDEO
For example: When properly fogged into an enclosed area like an airplane wing, the suspended CorrosionX Aviation vapor will entirely fill the void of an enclosed area and deposit a light coating of the product on every surface. This allows CorrosionX Aviation to go around blind corners, to treat the back sides of spars and to penetrate into lap seams and other areas that cannot be sprayed directly
In contrast, although overspraying and saturating an airframe using a common pump-up will usually not cause any damage, it will cause CorrosionX to drip and weep for longer than it needs to (not to mention wasting money by using excess product). The Handi-Spray systems will spray CorrosionX Heavy Duty nicely, but they are not able to atomize Heavy Duty as it is too thick to "fog".
Used extensively by the U.S. military as well as NATO forces, all CorrosionX products and Handi-Spray application equipment have been assigned National Stock Numbers (NSN) by the General Services Agency (GSA) and are available for procurement through the Defense Logistics Agency (DLA).

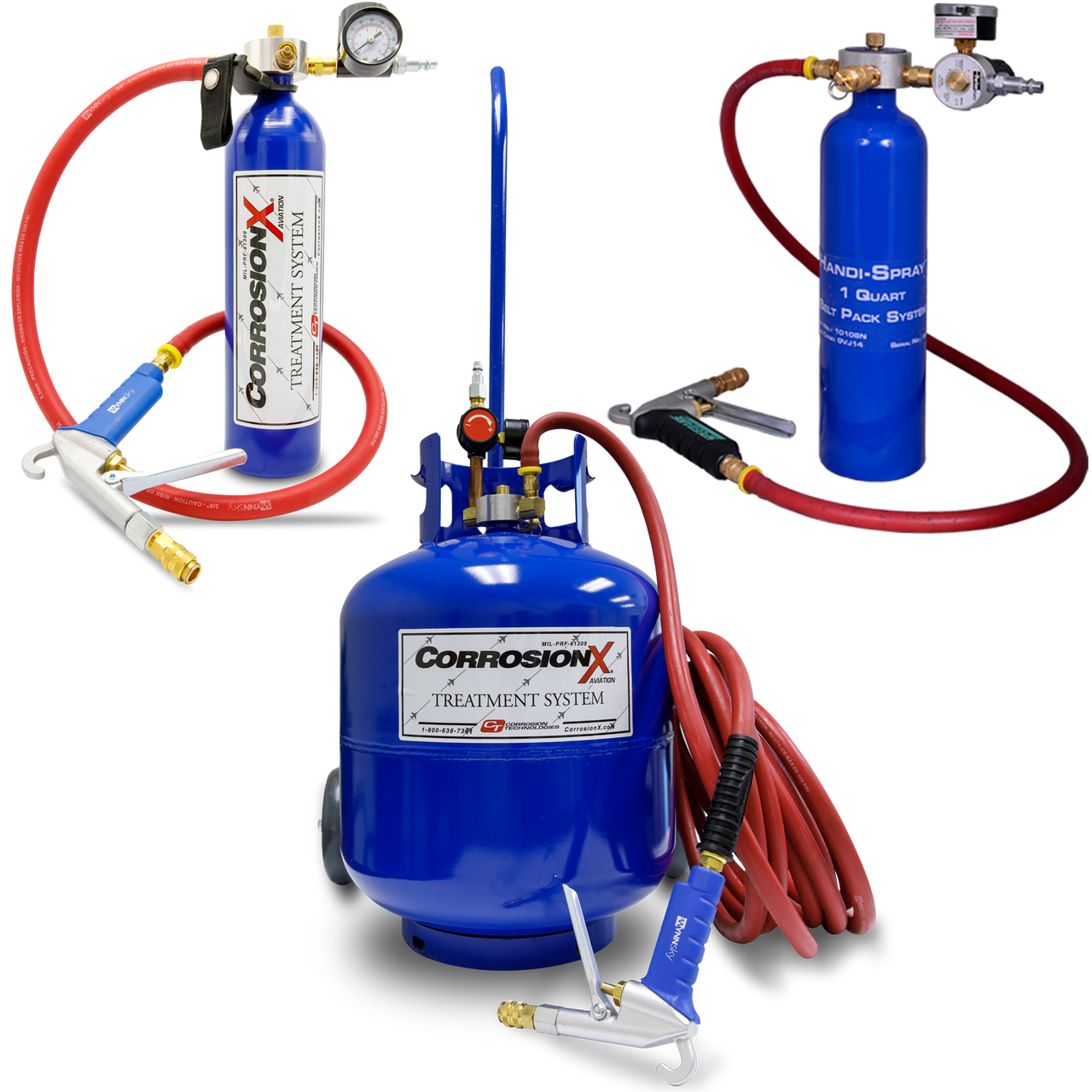

System Configurations
BeltPak Basic System includes: 1" Cricket Wand, 5" Hook Wand and 3' Superflex
NAVAIR System includes: 1" Cricket Wand, 5" Hook Wand and 3' 360° Wand

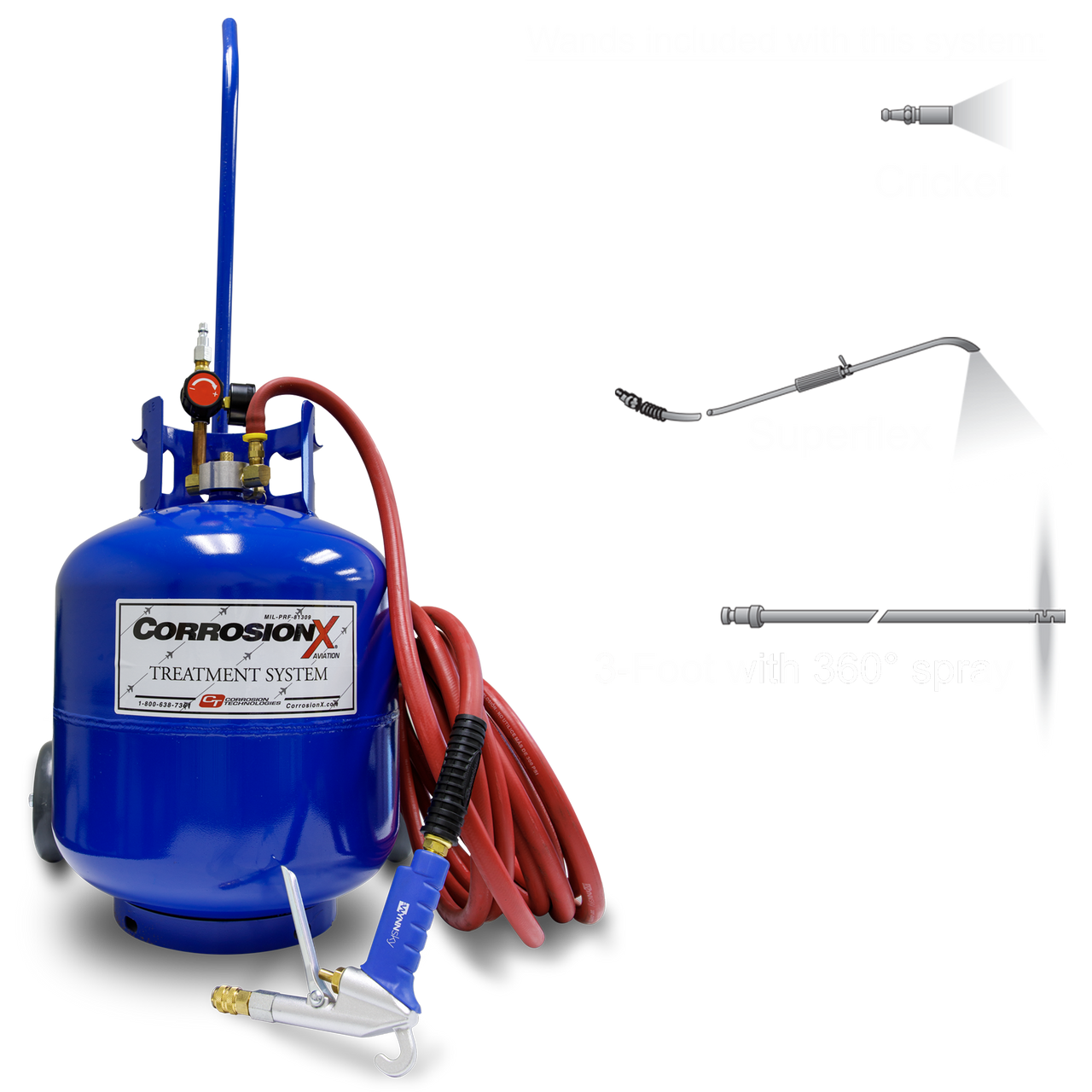

5 Gallon Basic System includes: 1" Cricket Wand, 3' 360° Wand and 3' Superflex
Aviation Systems include all six wands.
Corrosion Technologies has established an extensive network of CorrosionX Aviation Aircraft Treatment Centers that offer CorrosionX treatments as a customer service. Trained mechanics use special equipment to reach all compartments and difficult-to-access areas of the aircraft. Upon completion of the treatment, a special sticker attesting to the treatment is placed in the customer's logbook. Currently, there are more than 200 Treatment Centers operating throughout the United States and in several foreign countries.
Click here to find an Official CorrosionX Aviation Treatment Center.
Owners Manual
